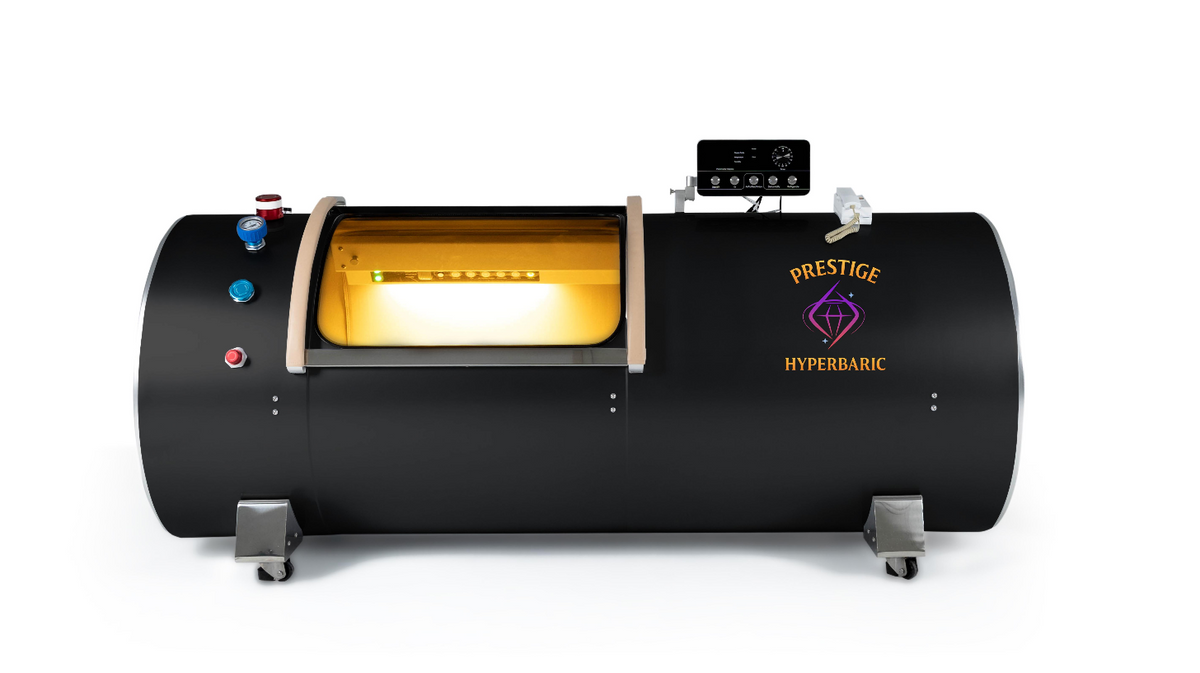

2.0 ATA Hard Shell Hyperbaric Chamber for Professional and Home Use

Product Identification

Brand: Prestige Hyperbaric
Model: Grand Vessel of Power
Model Number: PHP-GVP-20
Color: Black

System Type

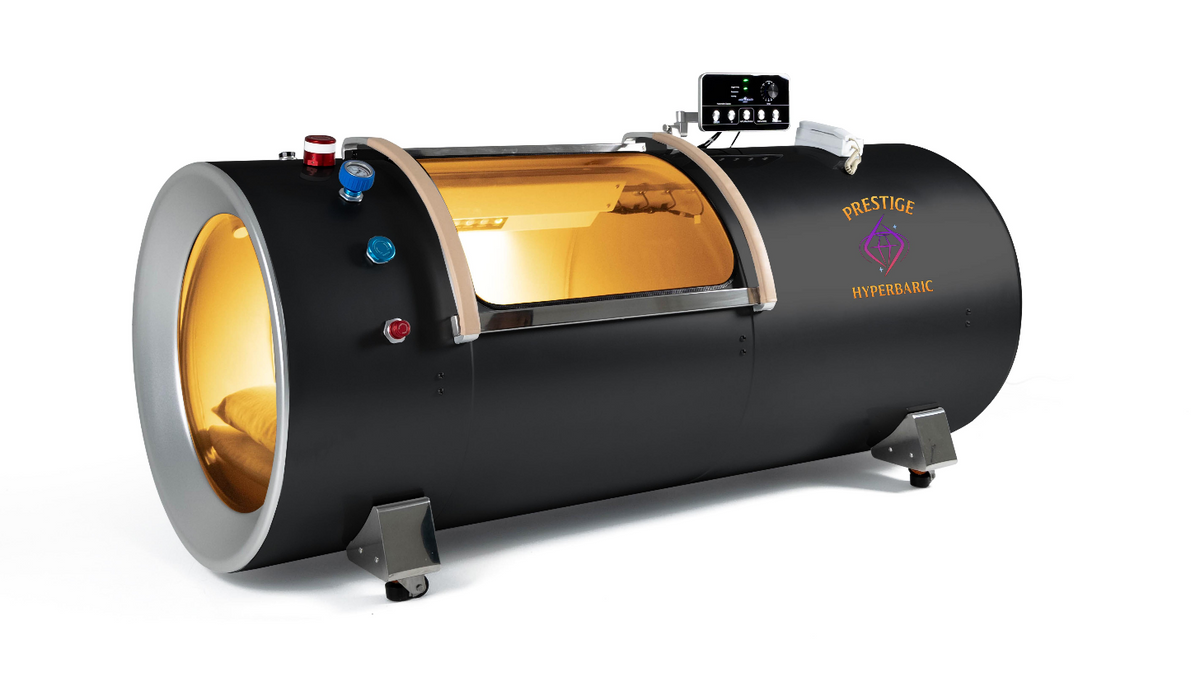

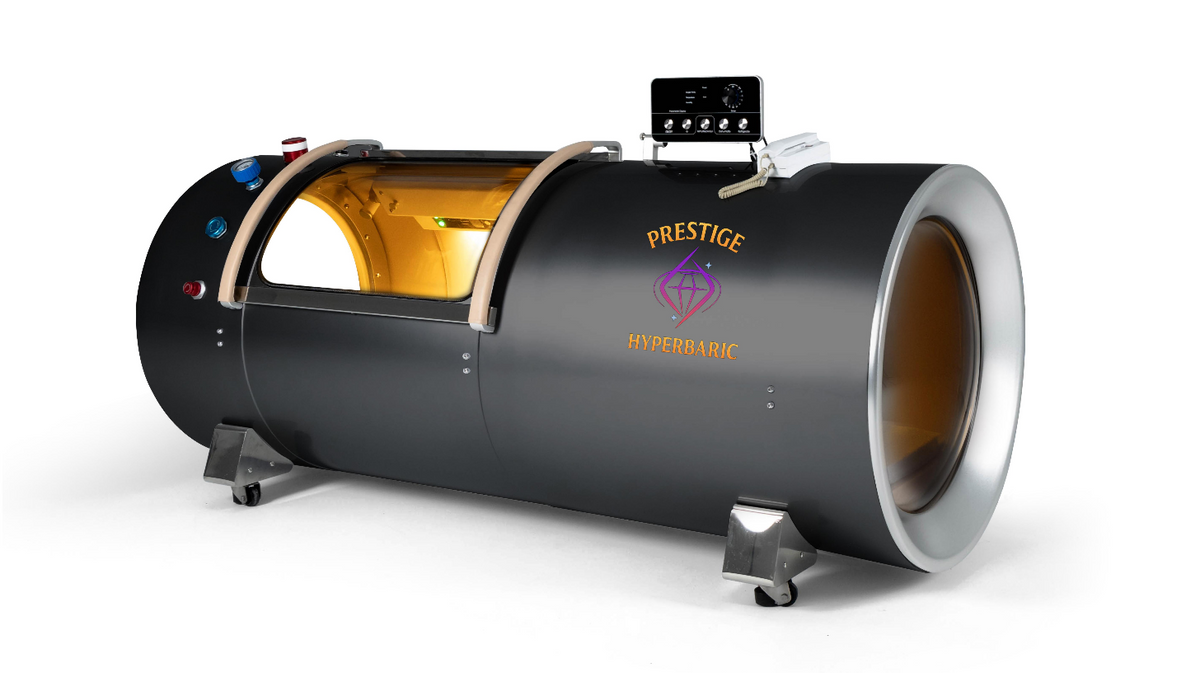

Chamber Type: Hard-shell lay-down hyperbaric chamber
Configuration: Full-body lay-down design
Capacity: 1 person (spacious interior; may accommodate 2 depending on use)

Dimensions & Weight

Interior Length: Approximately 79 inches
Interior Width: Approximately 34 inches
Interior Height: Approximately 60 inches
Interior Diameter: Approximately 30 inches
Exterior Footprint (Chamber): Approximately 90" L × 48" W × 59" H (verify prior to installation)
All-in-One Control System Dimensions: Approximately 27.56" L × 13.78" W × 29.53" H
Weight: Approximately 800 lbs (varies by configuration)

Pressure & Performance

Adjustable Pressure Range: 1.3–2.0 ATA
Maximum Pressure: 2.0 ATA
Oxygen Delivery: Adjustable 1–10 LPM
Oxygen Purity: 90–97%

System Architecture

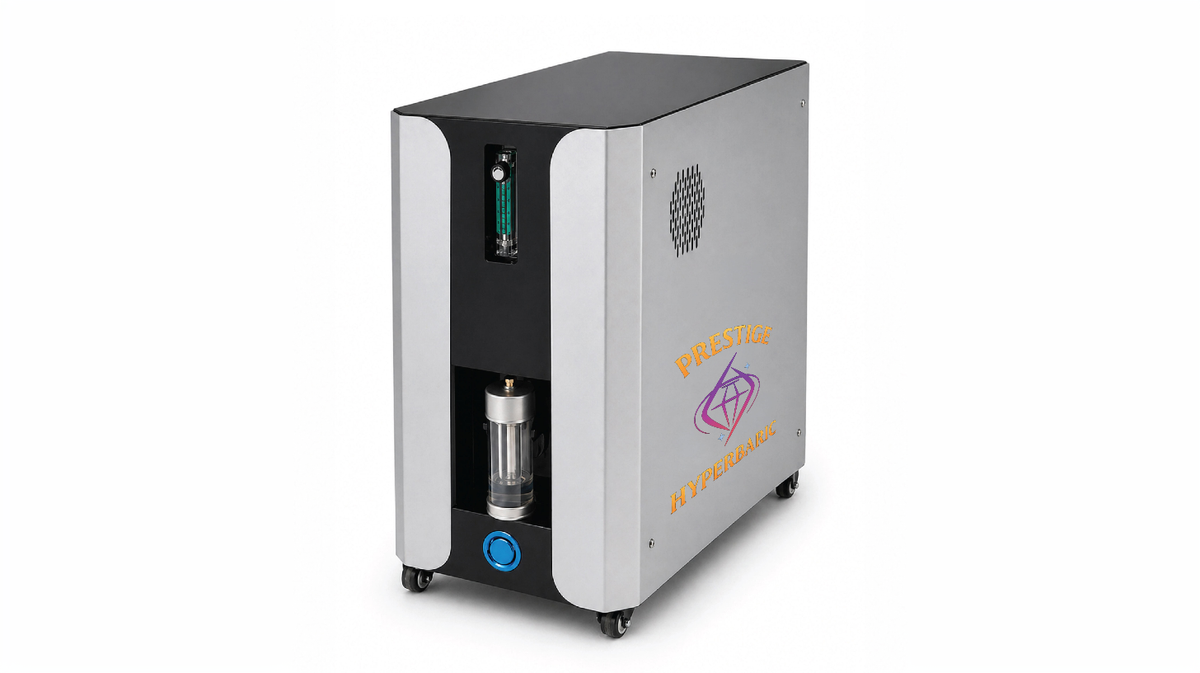

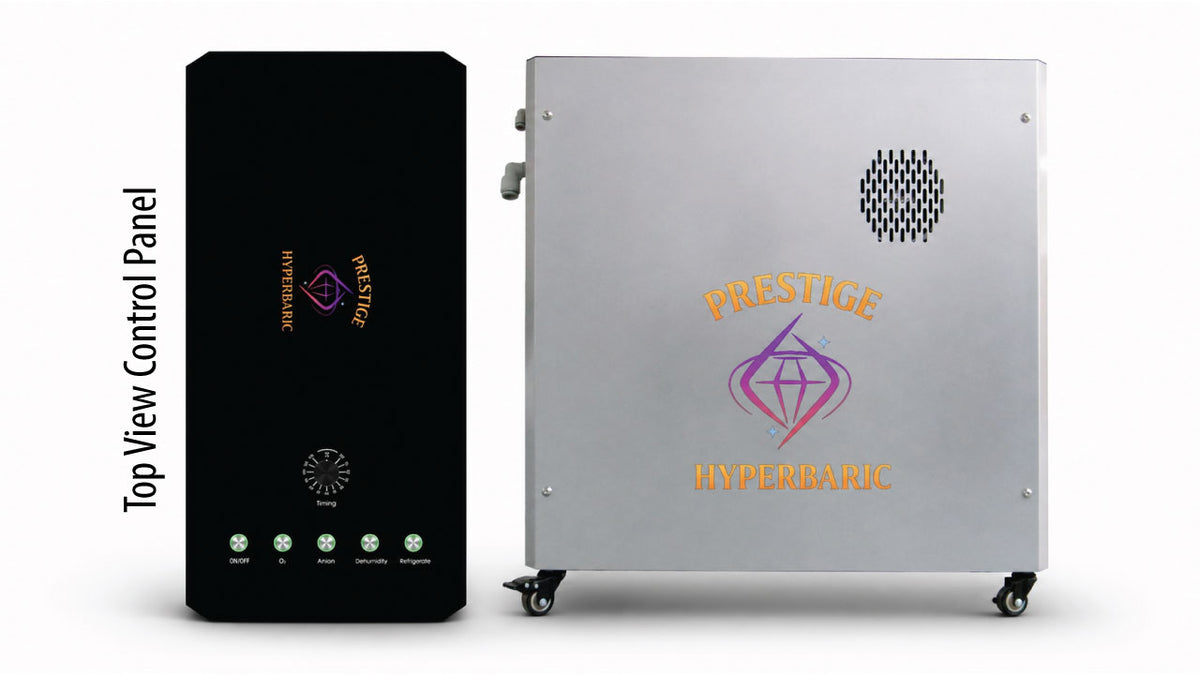

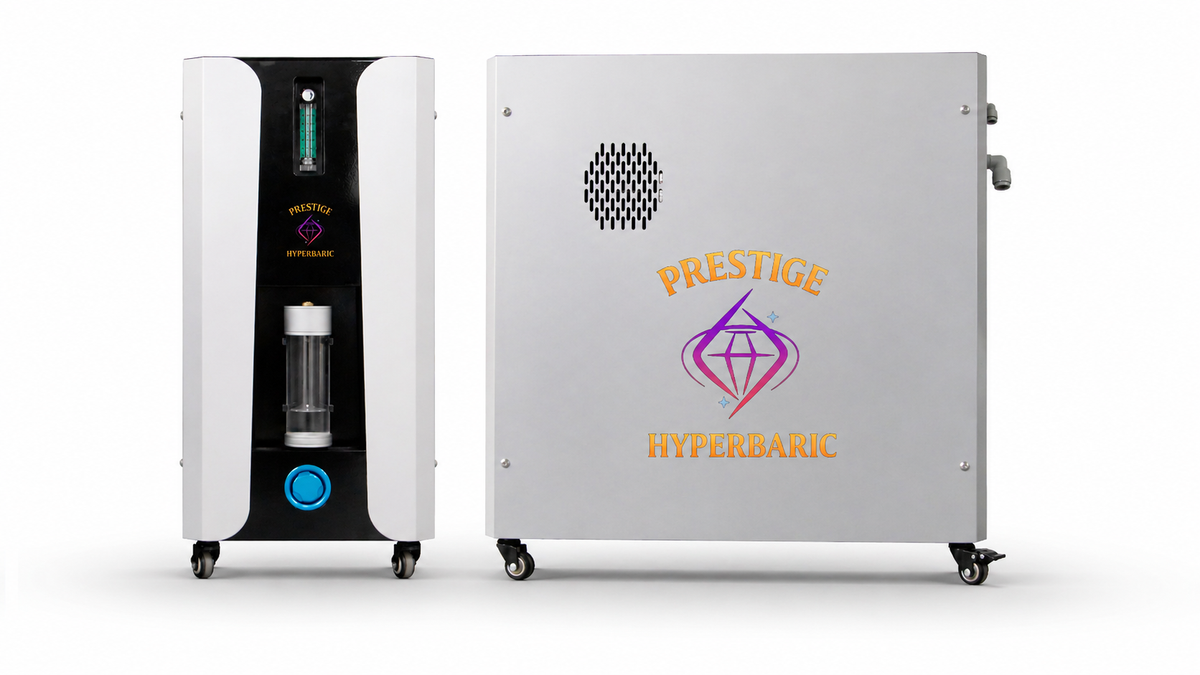

System Type: All-in-One Control System
Functions: Air compressor, oxygen concentrator, cooling, dehumidification, environmental management

Construction & Materials

Chamber Material: Multi-thickness stainless steel with reinforced structural support

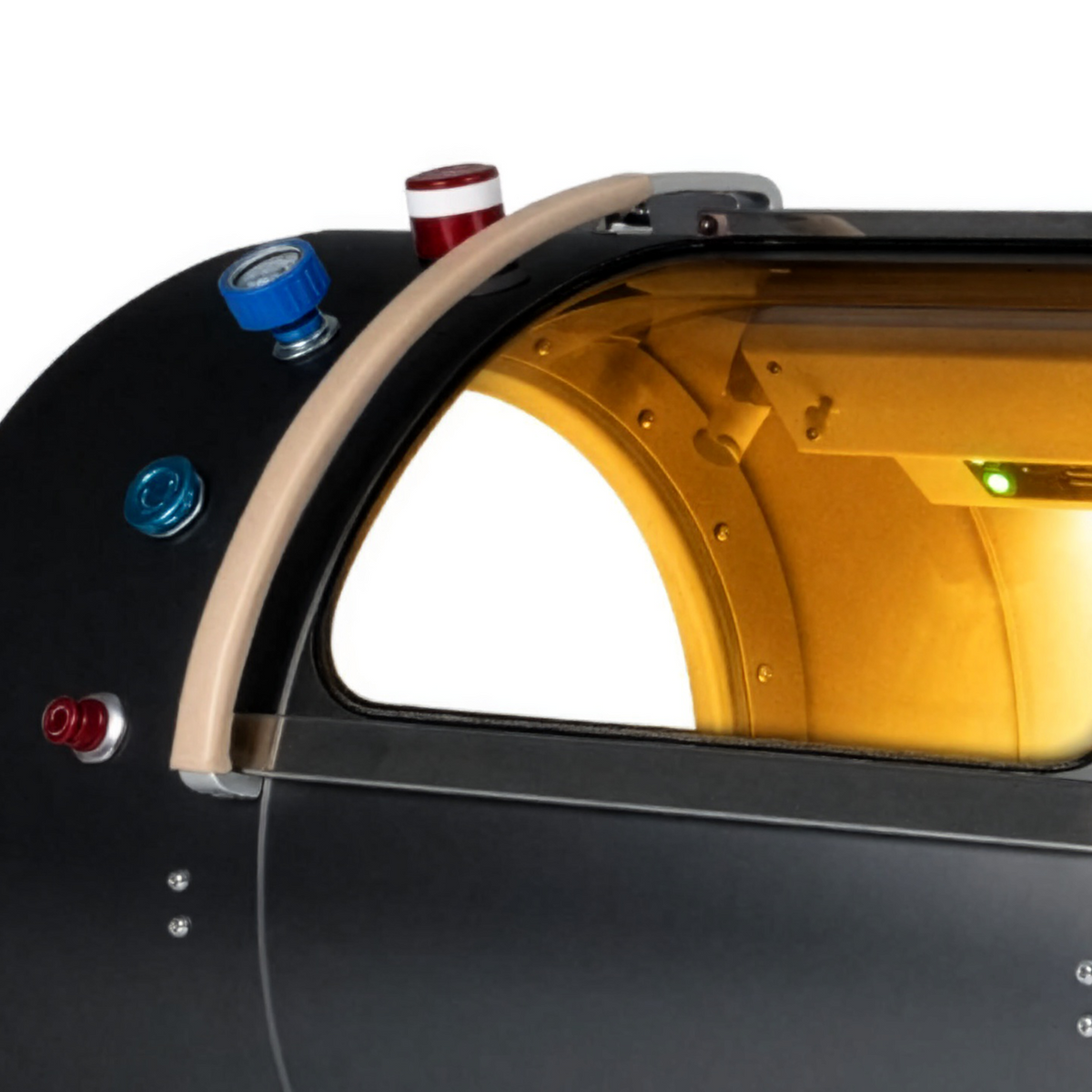

Windows: Double-layer aviation-grade polycarbonate (Bayer-grade)
Structure: Precision-welded assembly for high-pressure stability and long-term durability

Viewing & Access

Entry: Front-entry sealed chamber door

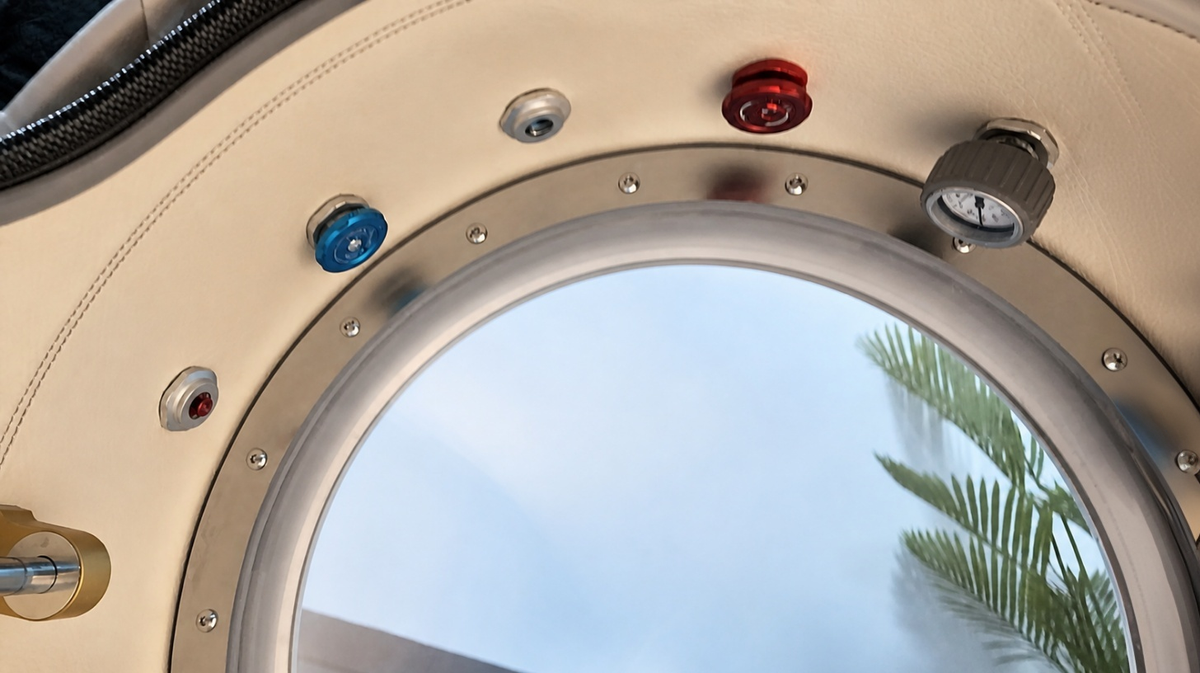

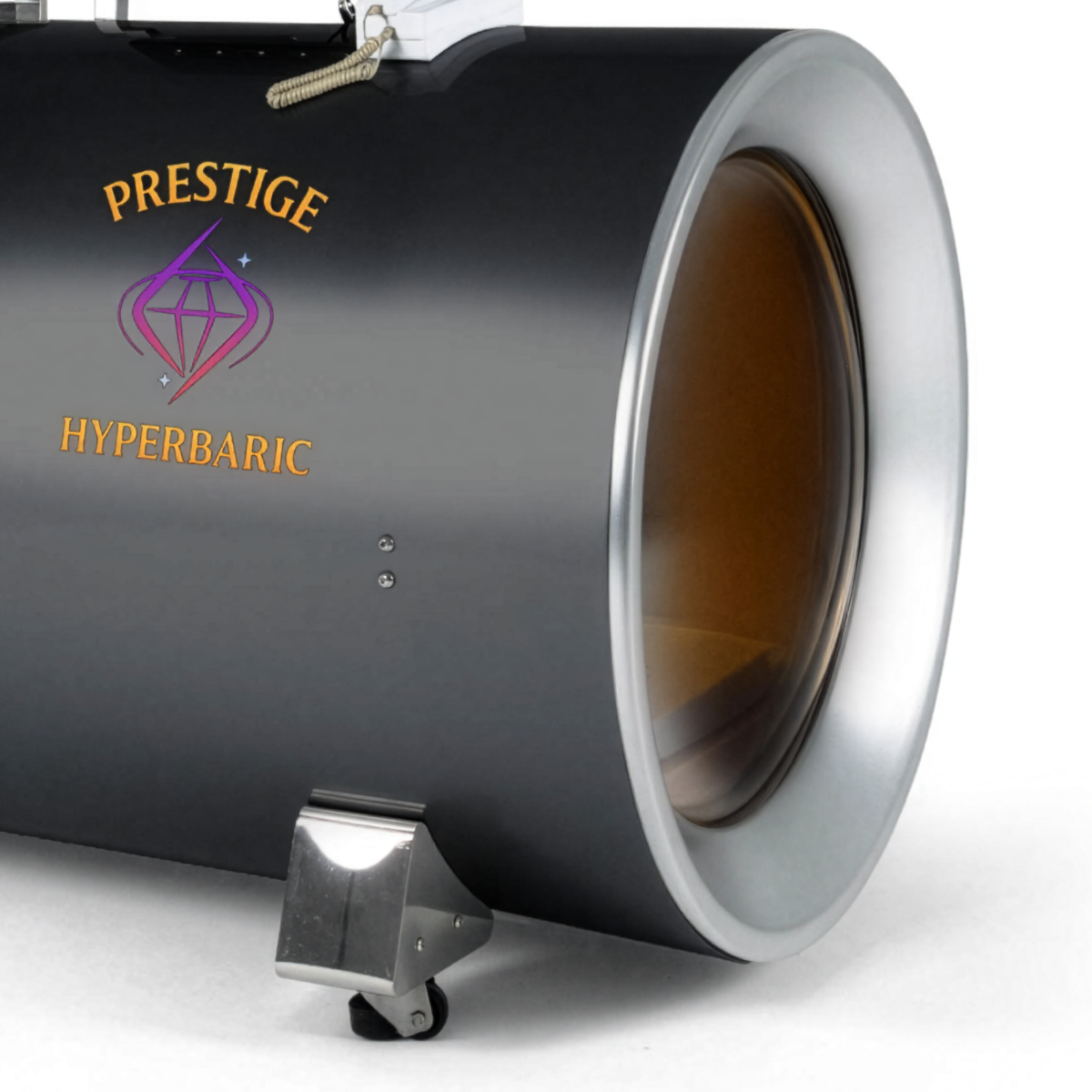

Windows: Dual transparent viewing windows (head and foot)
Interior: Balanced light and visibility for reduced enclosure sensitivity

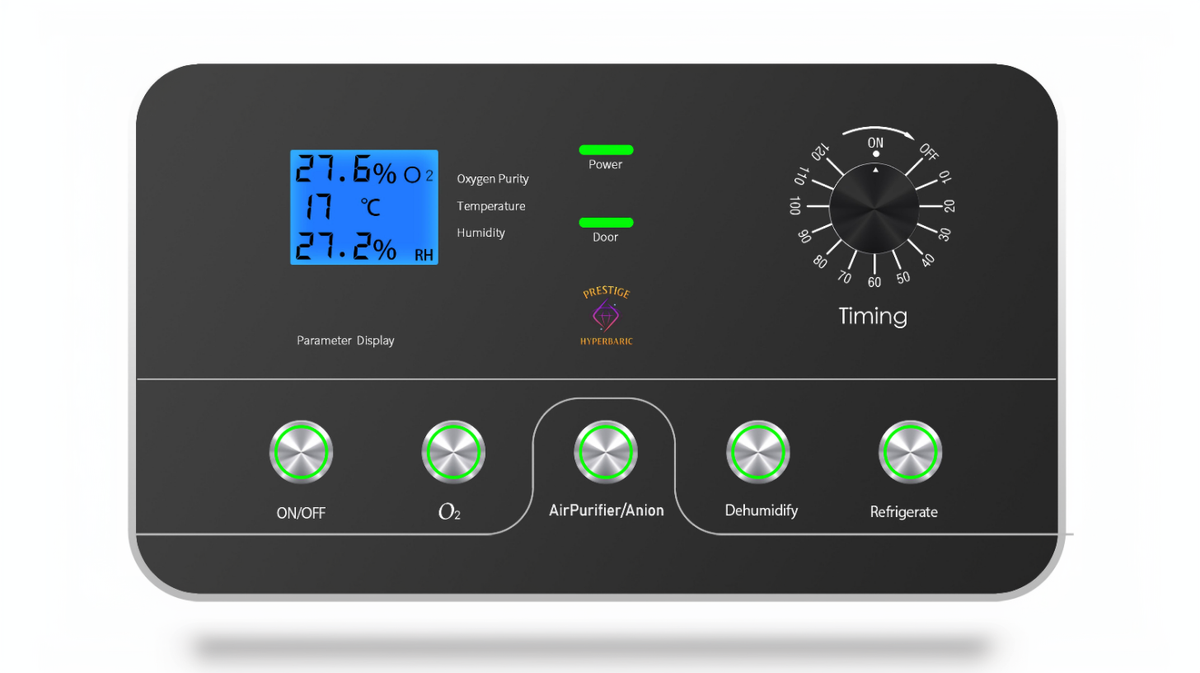

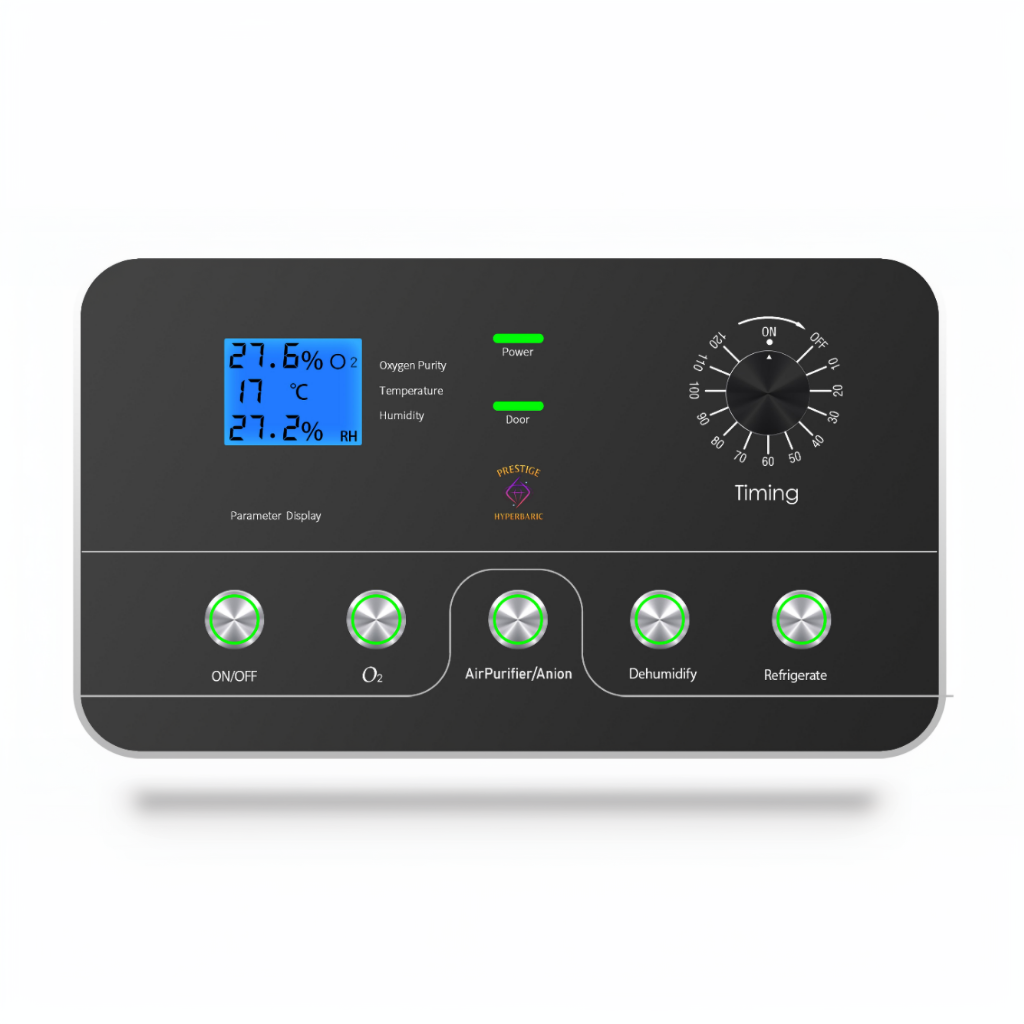

Control & Monitoring

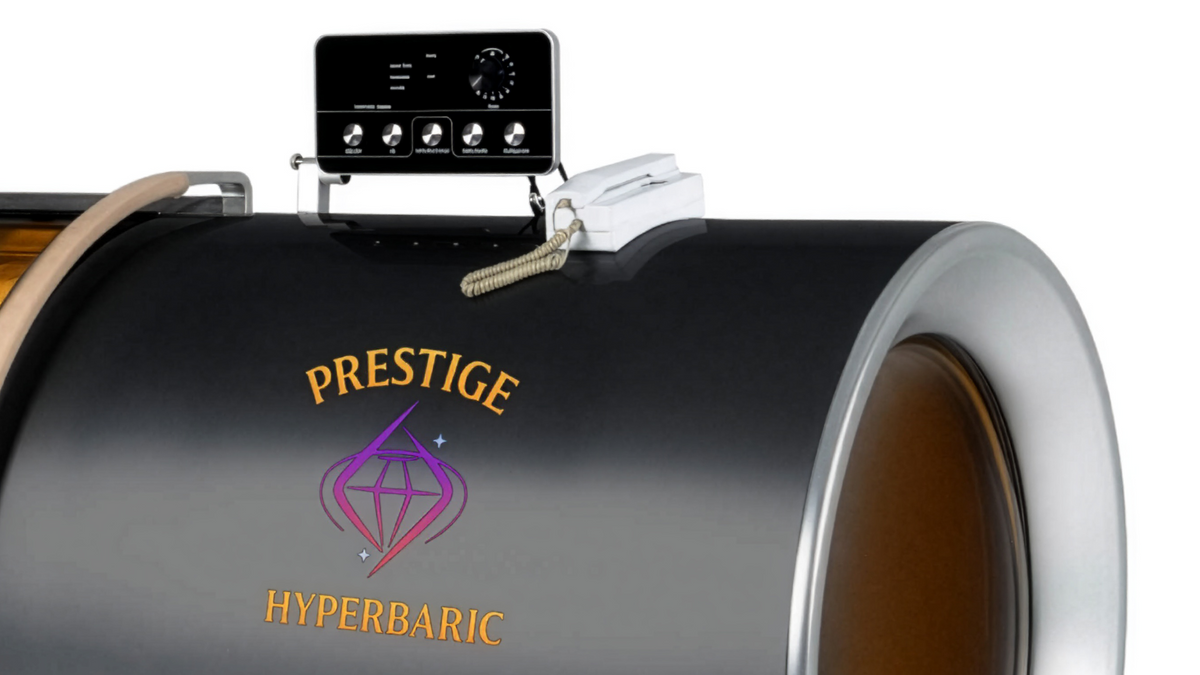

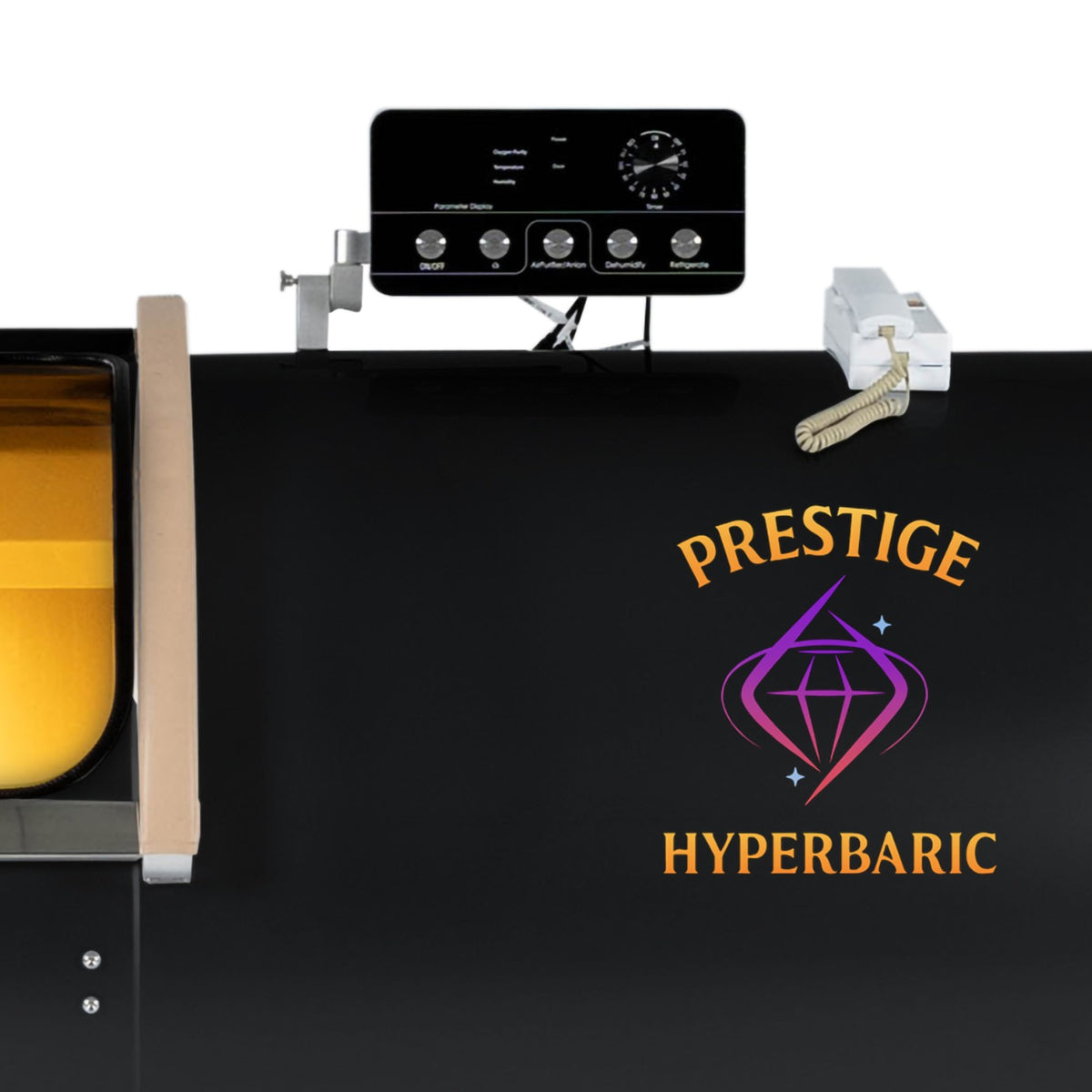

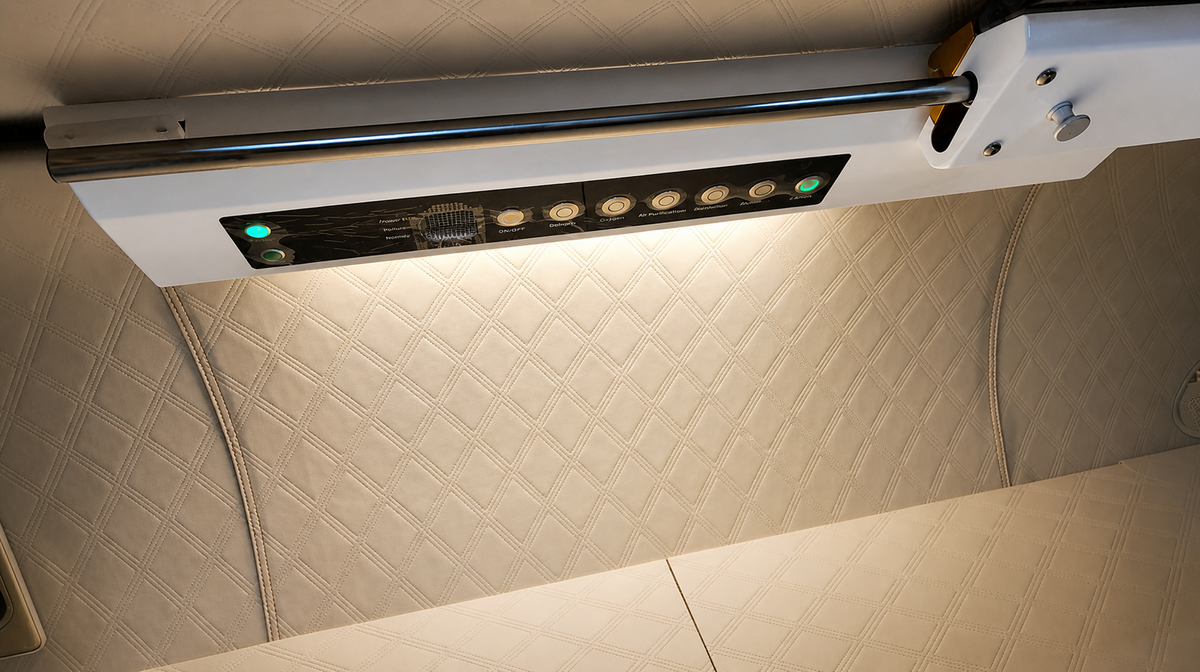

Control Panels: Internal and external
Displays: Dual digital display systems
Timer: 0–120 minutes
Communication: Integrated internal/external system
Monitoring: Pressure, temperature, humidity, oxygen

Safety Systems

Pressure Control: Multi-valve system
Emergency Release: Rapid pressure release
Power Failure: Automatic depressurization
Door Safety: Smart sensor with operational lockout
Operation: Dual-control capability

Environmental Systems

Cooling: Integrated electric air-cooling (no external system required)
Dehumidification: Internal humidity control
Filtration: PM2.5 air filtration
Purification: Anion-based sterilization system

Electrical Requirements

Voltage: 110V AC
Circuit: 20A dedicated outlet

Mobility & Installation

Mobility: Integrated wheel base (positioning only)
Environment: Indoor, clean, climate-controlled
Placement: Clearance required for access, system operation, and airflow

Warranty

Residential: 3-year limited warranty
Commercial: 1-year limited warranty
Extended: Additional coverage options available

Available Configurations & Optional Upgrades

• 20 LPM oxygen delivery upgrade
• BIBS 20 LPM oxygen delivery system
• HBOT-safe red and near-infrared light system with flexible mount
• Integrated TV or entertainment system (where compatible)
• Oxygen analyzer with training
• Extended warranty and maintenance plan options

For configuration details, compatibility, and upgrade availability, please contact us prior to purchase. (888) 488.8784

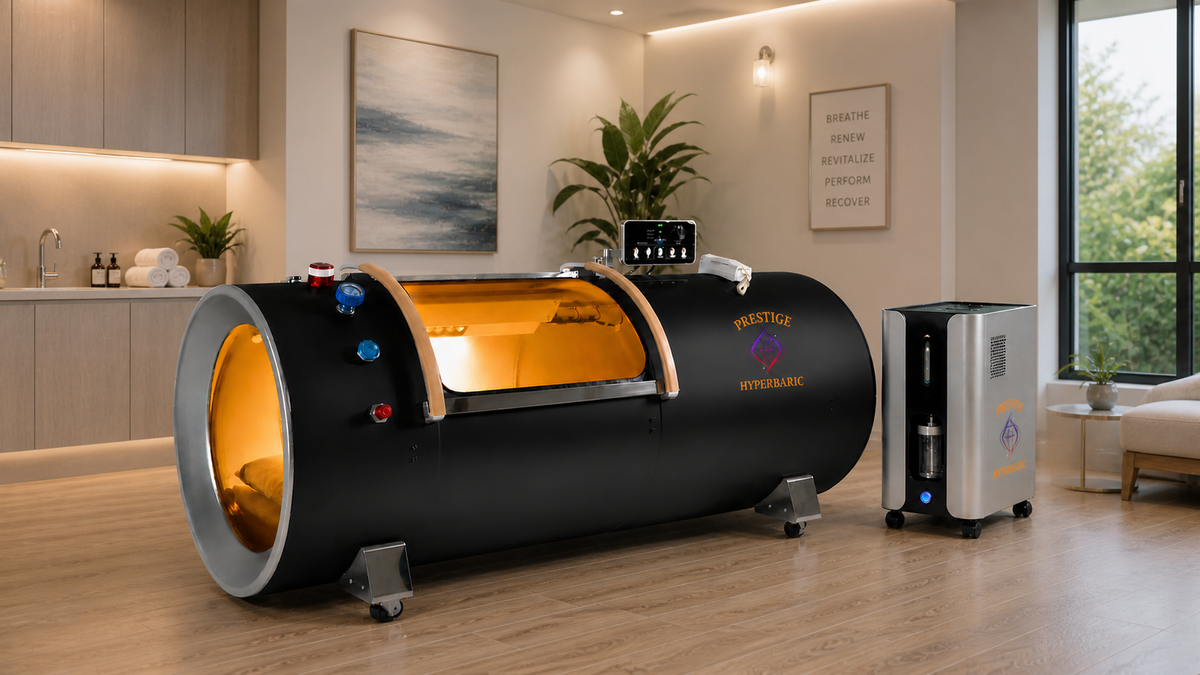

Designed for indoor home and professional use, the Prestige Grand Vessel of Power hard-shell lay-down hyperbaric chamber integrates into residential, wellness, or clinical environments with a structured footprint and defined placement requirements. With dimensions of approximately 79 inches in length, 34 inches in width, and 60 inches in height, along with an approximate 30-inch internal diameter, the system supports full-body positioning while remaining compatible with standard ceiling heights. The cylindrical design requires adequate horizontal space for safe access and operation, making it well-suited for dedicated wellness rooms, recovery spaces, or offices.

Unlike softshell systems, the rigid hard-shell construction requires more deliberate placement due to its structural weight and fixed form. Space should also be allocated for the complete integrated system, which is typically positioned adjacent to the chamber and supports oxygen delivery, air compression, and environmental control. Proper installation includes allowing sufficient clearance for entry, exit, and system access, along with placement in a clean, dry, climate-controlled environment with appropriate electrical capacity to support consistent performance and long-term reliability.

Prestige Hyperbaric provides structured warranty coverage based on the intended use environment of its equipment.

For residential use, systems are backed by a 3-year warranty covering defects in materials and workmanship under normal operating conditions. For commercial or professional environments—including wellness centers, clinics, recovery studios, gyms, or any setting where services are provided to third parties—coverage is limited to 1 year.

Warranty coverage applies to manufacturing-related defects and core system components when equipment is installed and operated according to recommended guidelines. Coverage may be limited or declined in cases of misuse, unauthorized modifications, improper electrical setup, or operation in non-climate-controlled environments.

Extended warranty options are available for purchase, typically structured on a per-year basis, for customers seeking additional long-term coverage.

For a more streamlined ownership experience, professional installation or White Glove delivery is recommended, as improper setup may impact warranty eligibility.

Please see the SanaVi Warranty Policy Page for further details and information.

Prestige Hyperbaric supports its equipment through a U.S.-based team located in Holiday, Florida, providing post-purchase assistance with delivery coordination, installation services, and warranty-related support. This structured service approach is designed to help guide customers through setup, operation, and ongoing ownership after the system has been delivered.

Please refer to the Prestige Hyperbaric Owner's Manual included in your delivery for product related safety information.

For important health and safety information, please review SanaVi's Medical & Safety Disclaimer Page before using this equipment.

By purchasing or using products distributed by SanaVi Health Systems LLC, customers acknowledge that they have read and understood this Medical & Safety Disclaimer and agree to use all equipment responsibly and in accordance with Manufacturer guidance.

What is a 2.0 ATA hyperbaric chamber for home use

A 2.0 ATA hyperbaric chamber for home use is a pressurized oxygen system designed to operate at up to two times normal atmospheric pressure. It allows users to experience controlled oxygen environments within residential or professional settings using an integrated system.

Is a 2.0 ATA hyperbaric chamber safe to use at home?

A 2.0 ATA hyperbaric chamber can be used in home environments when designed with integrated safety systems and operated according to guidelines. These systems typically include pressure relief valves, smart door sensors, and automatic depressurization features.

Can you use a hyperbaric chamber by yourself?

Many hyperbaric chambers are designed for independent operation. Systems with internal and external controls allow users to manage pressurization, oxygen delivery, and system conditions while still supporting assisted use when needed.

Can you sleep in a hyperbaric chamber?

Sleeping in a hyperbaric chamber is not recommended. Sessions are intended to be conducted while the user is awake and aware of system conditions to allow appropriate response to pressure and environmental changes.

What is the difference between 1.5 ATA and 2.0 ATA hyperbaric chambers?

The difference is maximum pressure capability. A 2.0 ATA chamber supports higher-pressure operation and a broader adjustable range, while 1.5 ATA systems operate at lower pressure levels.

How much space is needed for a hyperbaric chamber at home?

Space requirements depend on chamber size and system placement. Hard-shell units require adequate clearance for entry, exit, and operation, along with a clean, climate-controlled indoor environment.

What features should a hard shell hyperbaric chamber have?

A hard shell hyperbaric chamber should include reinforced construction, adjustable pressure control, integrated oxygen delivery, and safety systems such as pressure relief valves and door sensors.

What does an All-in-One Control System mean in a hyperbaric chamber?

An All-in-One Control System integrates the air compressor, oxygen concentrator, cooling, dehumidification, and environmental management components into a single coordinated platform, supporting consistent performance and simplified operation.

How is oxygen delivered in a hyperbaric chamber?

Oxygen is delivered through the All-in-One Control System using a concentrator and tubing system. These systems provide adjustable oxygen flow, typically ranging from 1 to 10 LPM, within a controlled pressurized environment.

Is a lay-down hyperbaric chamber better than a sit-up model?

A lay-down hyperbaric chamber supports full-body positioning, while sit-up models provide upright or reclined positioning using a chair. Both configurations can support consistent sessions, and the choice depends on user preference, space, and intended use.

What should I consider before buying a hyperbaric chamber for home use?

Key considerations include available space, system type, pressure range, safety features, and whether the system supports independent operation. Installation requirements and long-term usability should also be evaluated.

For proper setup, operation, and ongoing use, please refer to the Prestige Hyperbaric Owner's Manual included with your system. The manual provides step-by-step guidance on installation, program selection, safety considerations, and recommended usage to help ensure consistent and appropriate performance over time.

Routine maintenance is designed to be straightforward and aligned with regular system use. Periodic inspection of hoses, valves, door seals, and connection points, along with basic upkeep of air filtration components, helps support consistent system performance over time. The integrated system unit consolidates core operational functions into a single platform, reducing overall maintenance complexity and limiting the number of components requiring ongoing attention.

The chamber should be used in a clean, dry, climate-controlled environment and can be cleaned as needed using a soft, damp cloth to remove surface dust or debris. Care should be taken to keep the chamber exterior, door sealing surfaces, and viewing panels free from buildup and unnecessary wear. Routine visual checks help support proper sealing, structural integrity, and long-term performance consistency without requiring specialized maintenance procedures.

For detailed maintenance procedures and care requirements, please refer to the user manual included with your system.
