Dynamic Barcelona 1–2 Person LOW EMF Infrared Sauna with Red Light Therapy

Dimensions

• Overall Width (outer): 39"
• Overall Depth (outer): 36" (+2" roof overhang)
• Overall Height: 73"
• Interior Width: 36"
• Interior Depth: 32"
• Interior Height: 67"

Materials & Build

• Exterior: Reforested Canadian hemlock
• Interior: Natural hemlock wood construction

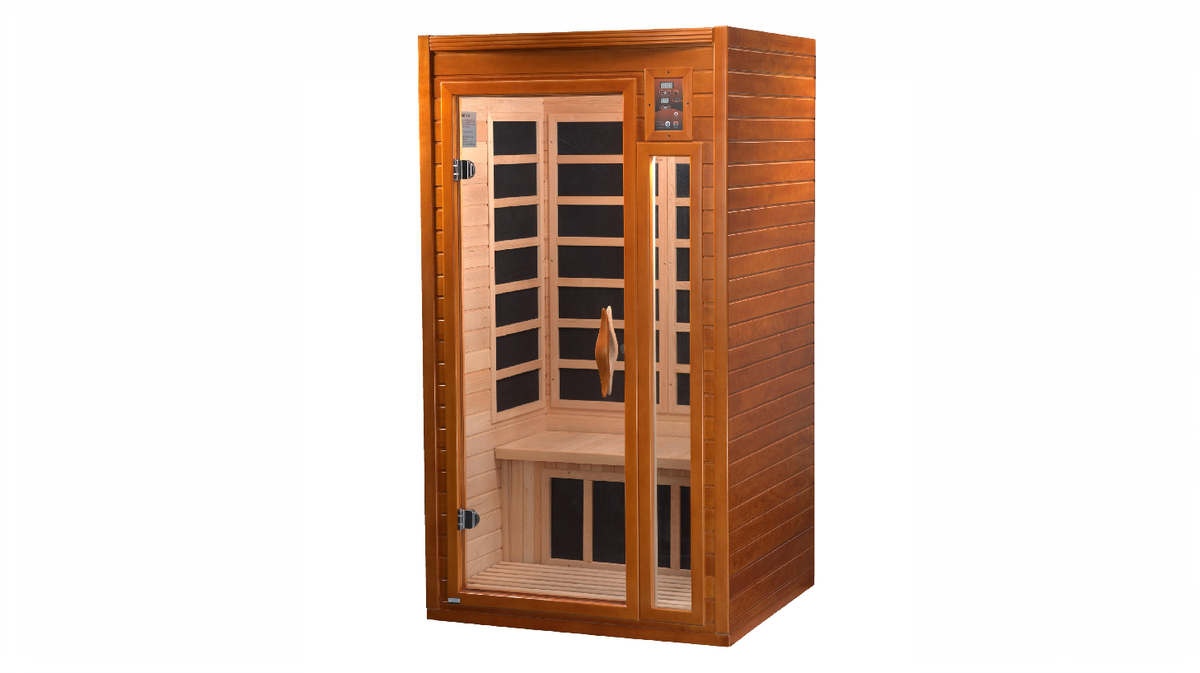

• Door: Clear tempered glass
• Design: Compact, vertical cabin

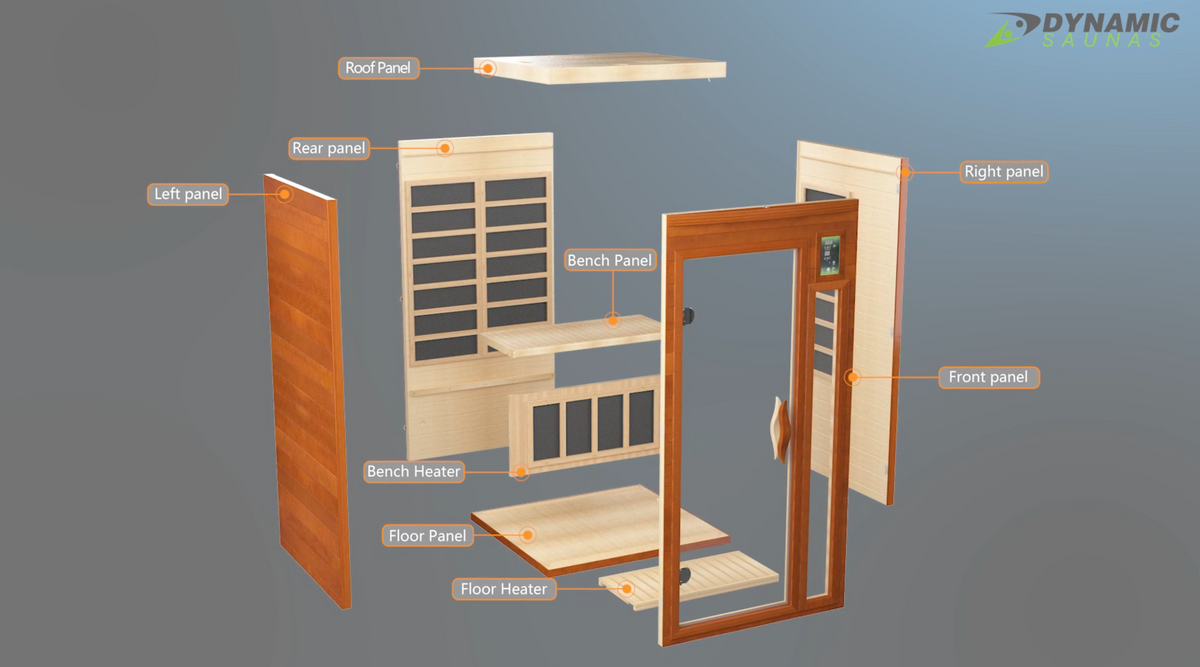

• Construction: Clasp-together panel system

Heating System

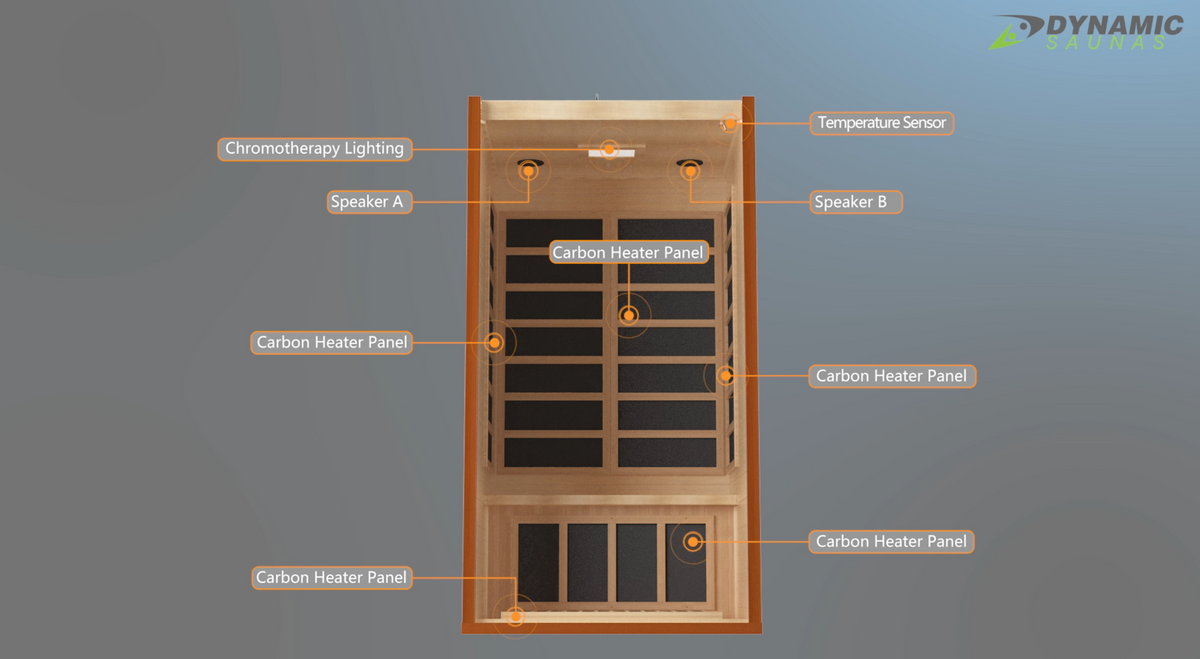

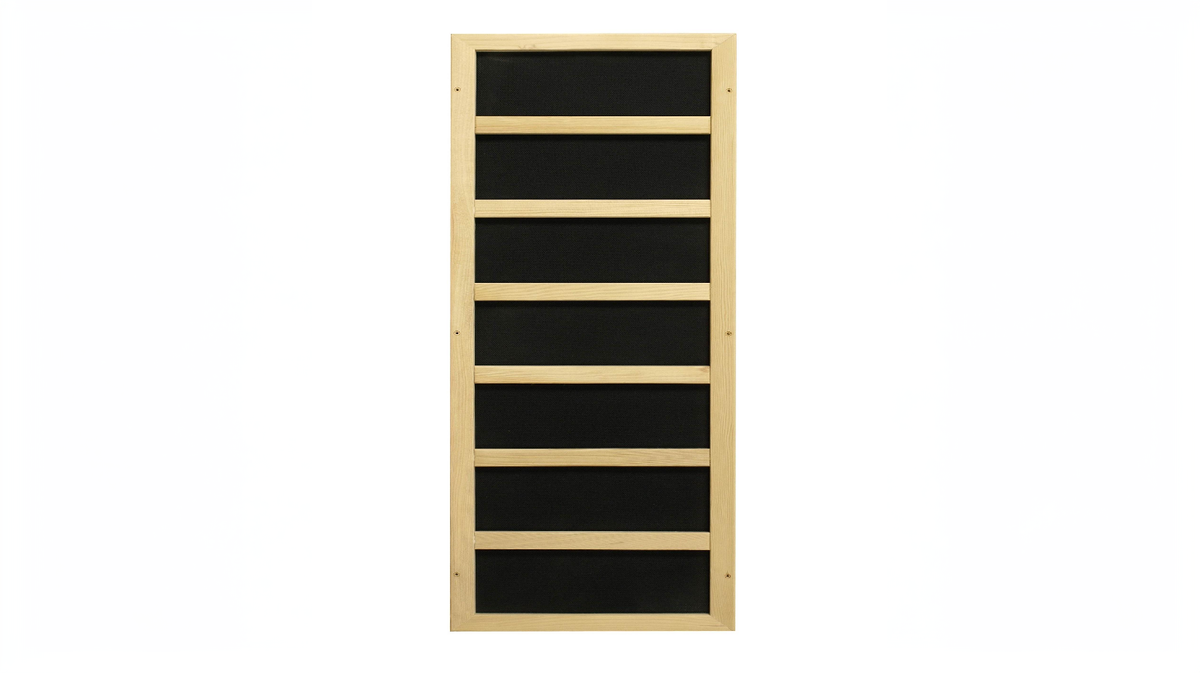

• Heating Type: Far infrared carbon panels
• Number of Heaters: 6 panels
• EMF Rating: Low EMF (approx. 5–10 mG near panels)

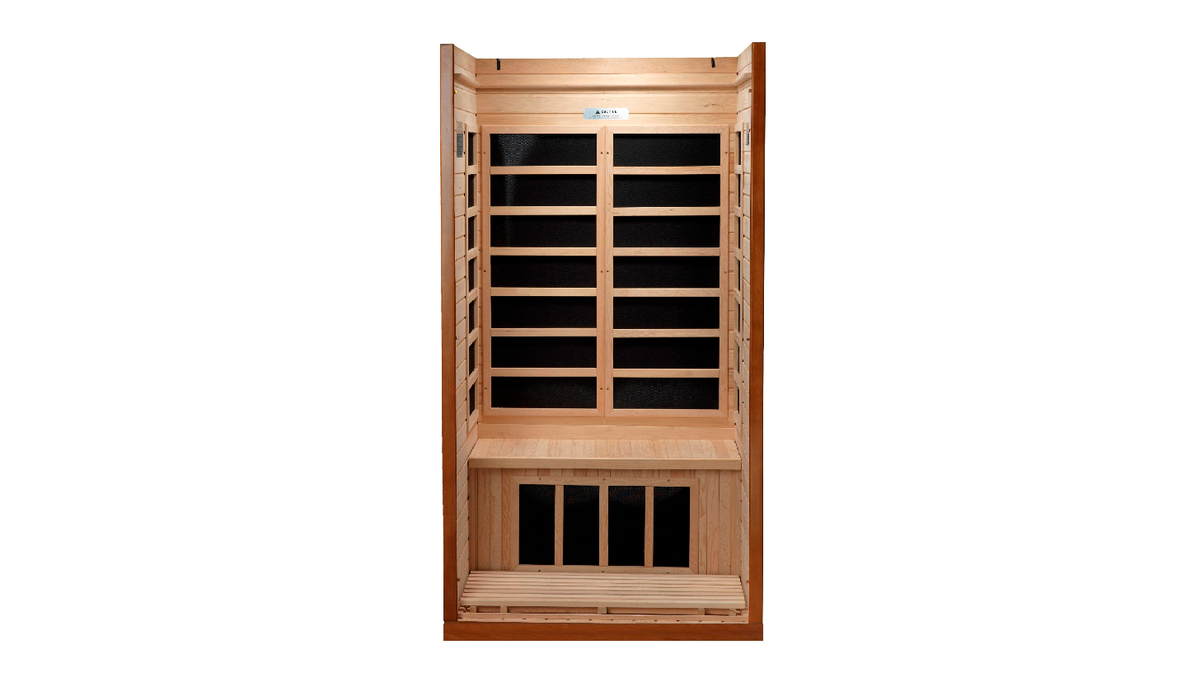

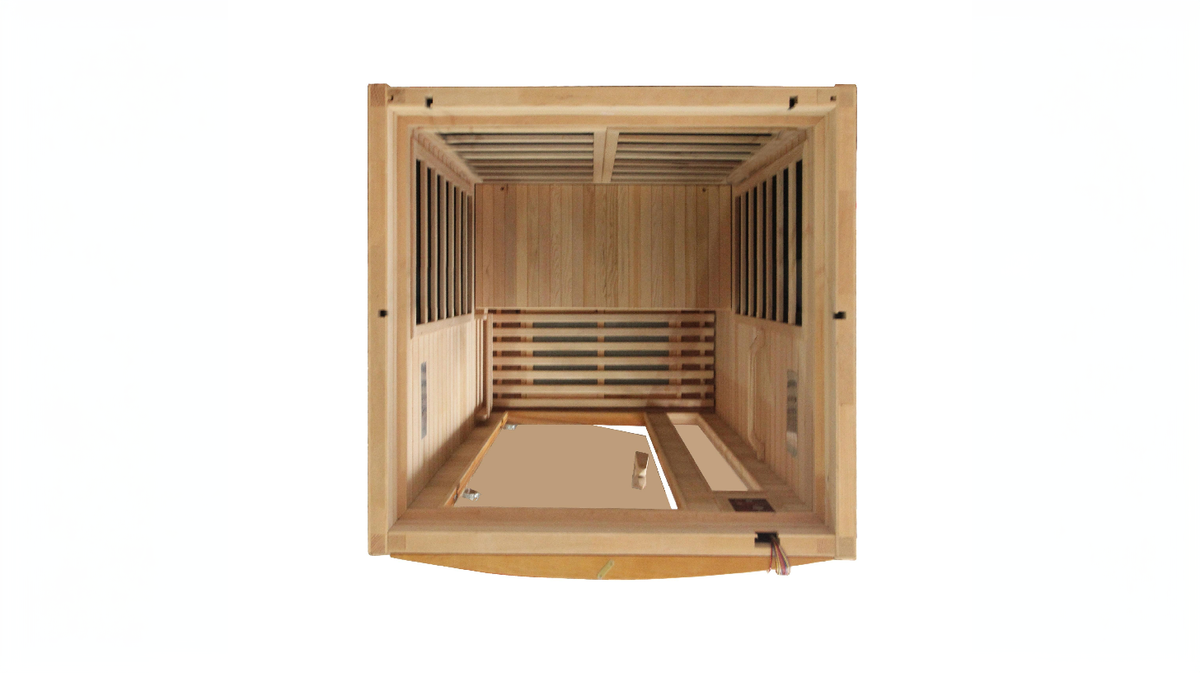

• Heat Distribution: Full-body panel placement (walls, bench, floor)
• Bench & Floor Heaters: Lower-output supplemental panels for balanced heat
• Temperature Range: ~118°F–132°F typical use
• Max Temperature: Up to ~140°F
• Estimated Heat-Up Time: ~20–30 minutes to reach typical range

Electrical Requirements

• Power Supply: 120V / 15-amp
• Plug Type: Standard household plug (non-GFCI recommended)
• Installation: Plug-and-play (dedicated outlet recommended)

Controls & Features

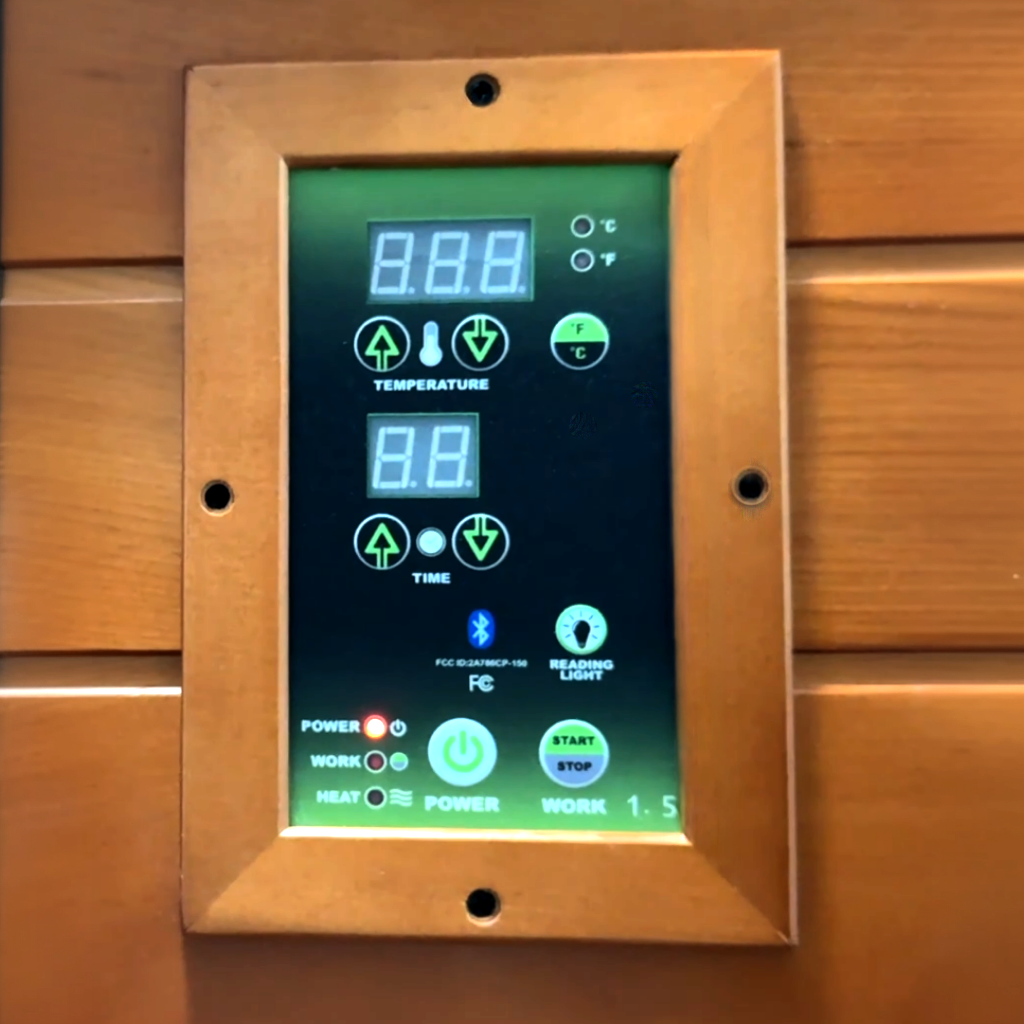

• Control Panels: Interior LED control system
• Control Functions: Time, temperature, lighting, and session controls

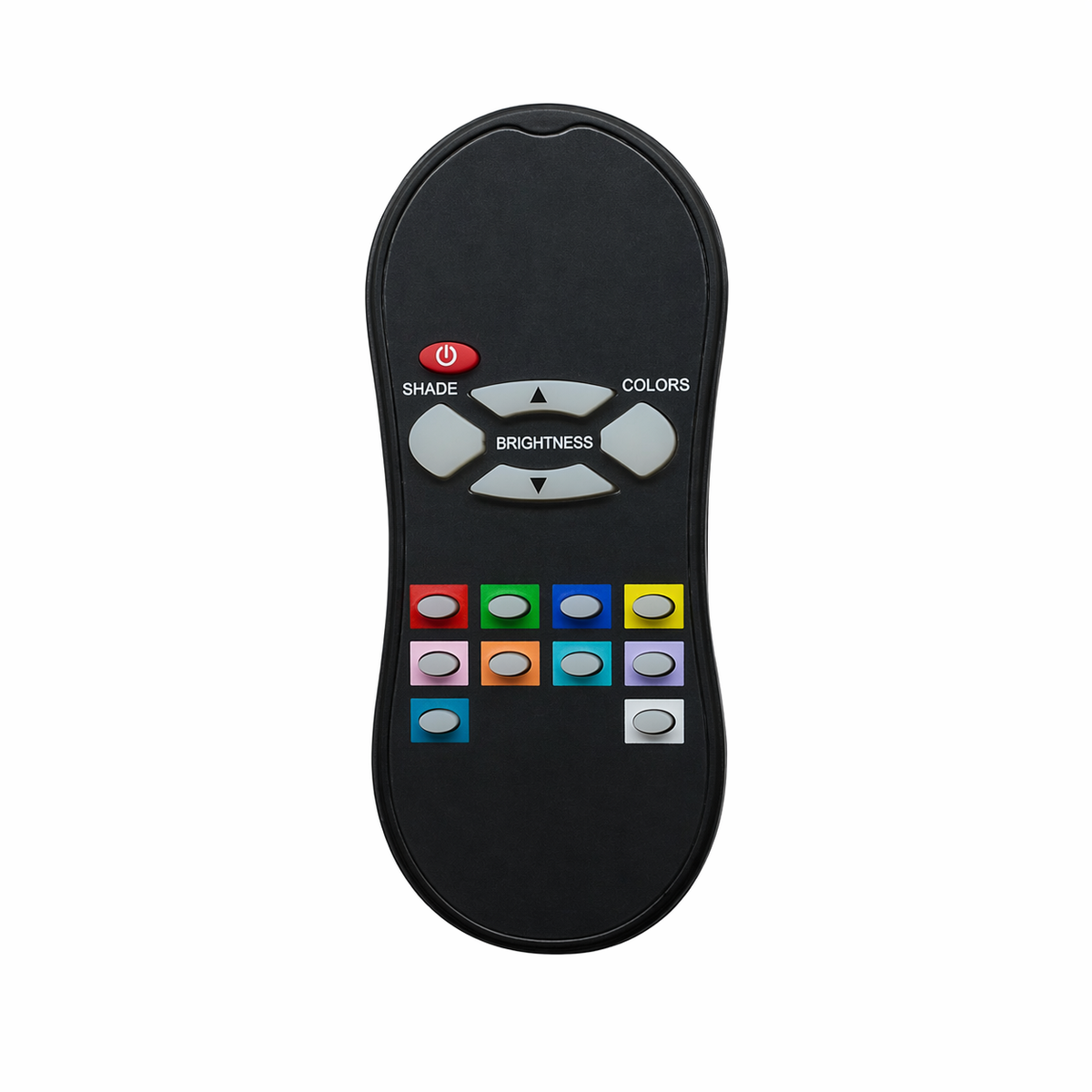

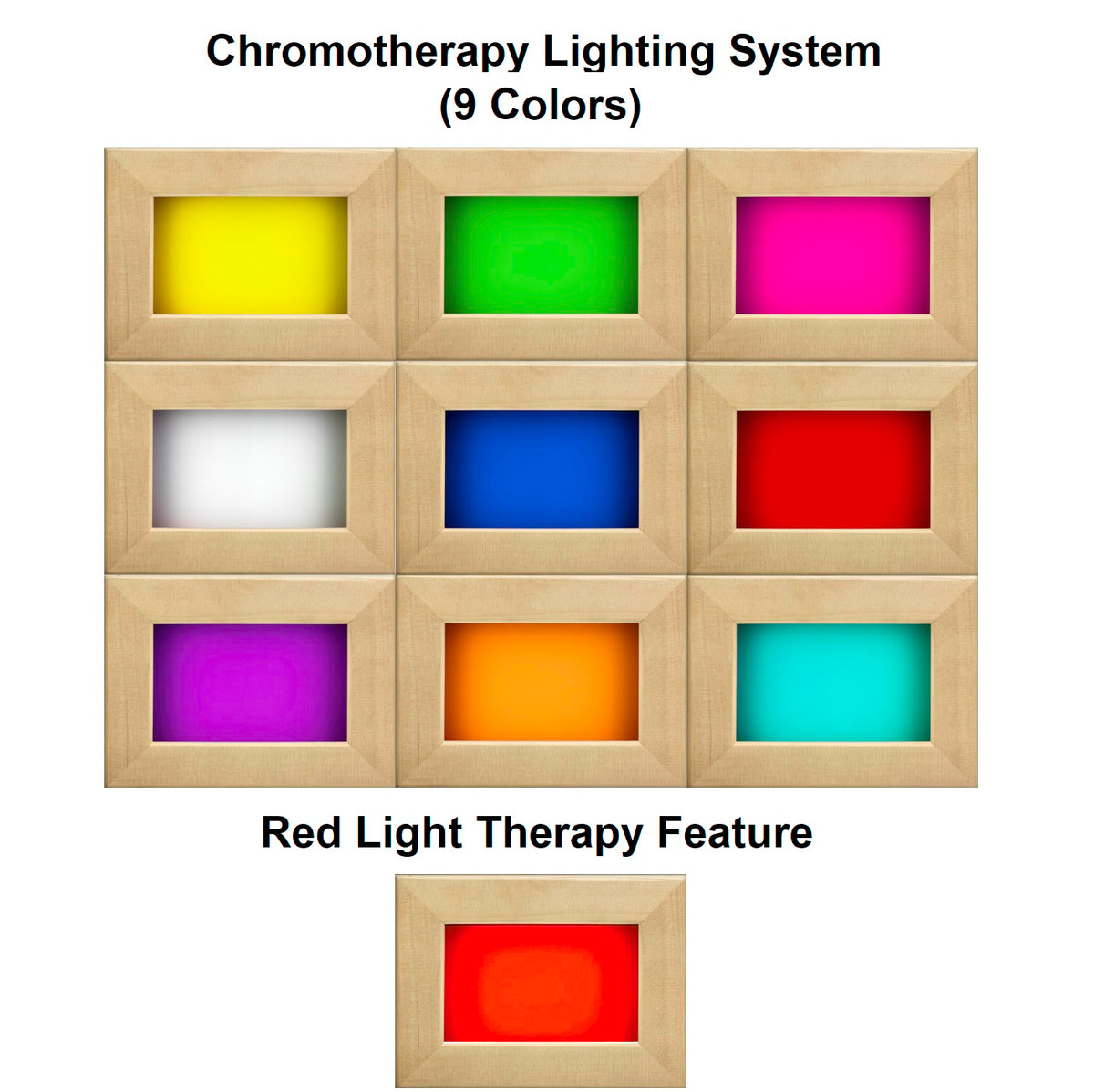

• Lighting: Chromotherapy color lighting
• Red Light Therapy: Integrated with lighting system

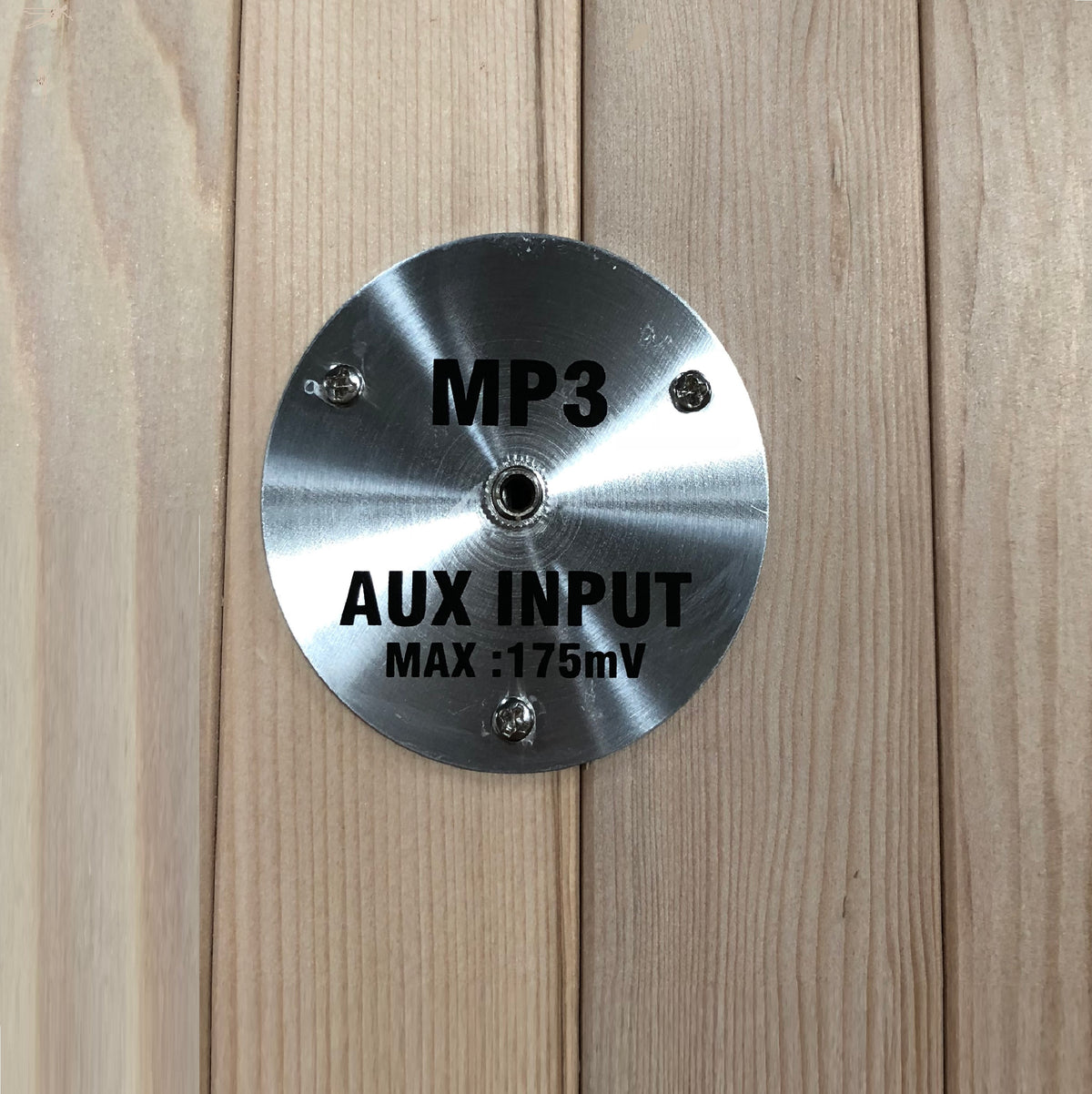

• Audio: Bluetooth + AUX input with built-in speakers

Ventilation & Airflow

• Vent Type: Adjustable roof vent
• Purpose: Airflow and temperature regulation

Capacity & Use

• Capacity: 1–2 person
• Primary Use: Indoor home use only
• Session Range: Designed for consistent daily use
• Recommended Use Cycle: Up to 3 hours continuous use followed by cooldown period

Weight & Shipping

• Sauna Weight: ~250 lbs
• Shipping Weight: ~300 lbs
• Packaging: Ships in 1 box

Installation Requirements

• Placement: Indoor only
• Surface: Flat, level flooring
• Assembly: Two-person recommended
• Build Type: Tool-assisted panel assembly
• Quality Note: Panels are pre-tested prior to shipment

Warranty

• Coverage: 1–5 year limited warranty
• Scope: Structure, heaters, and electronics
• Limitations: Indoor use only; non-transferable

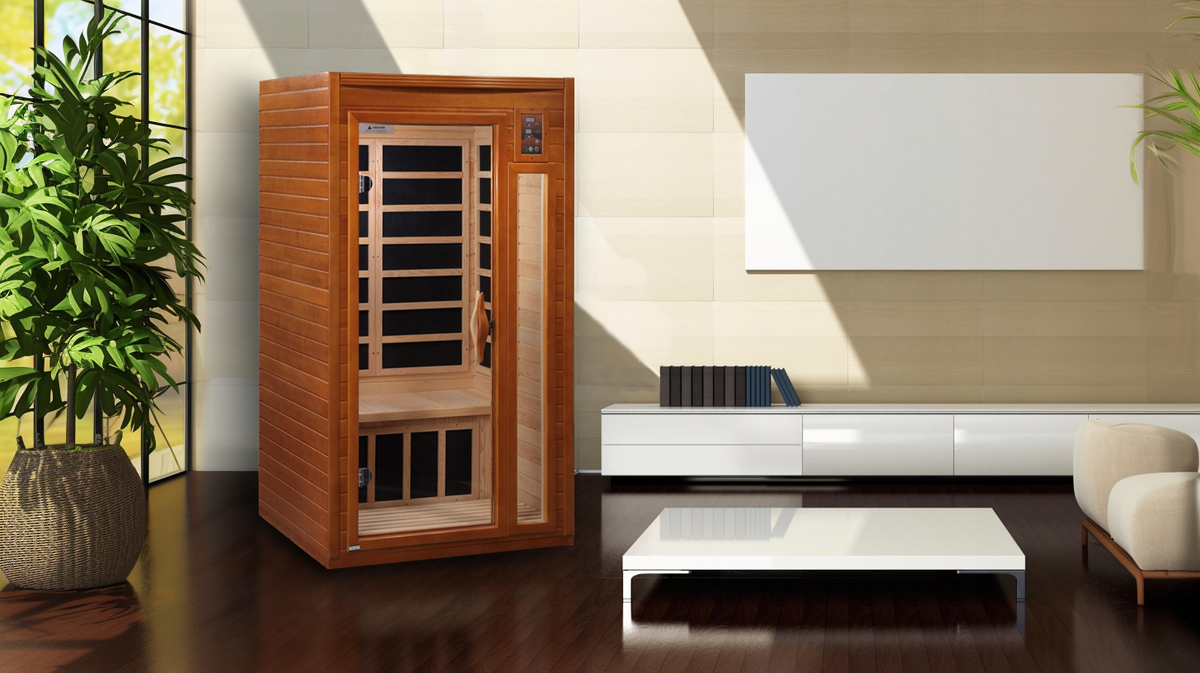

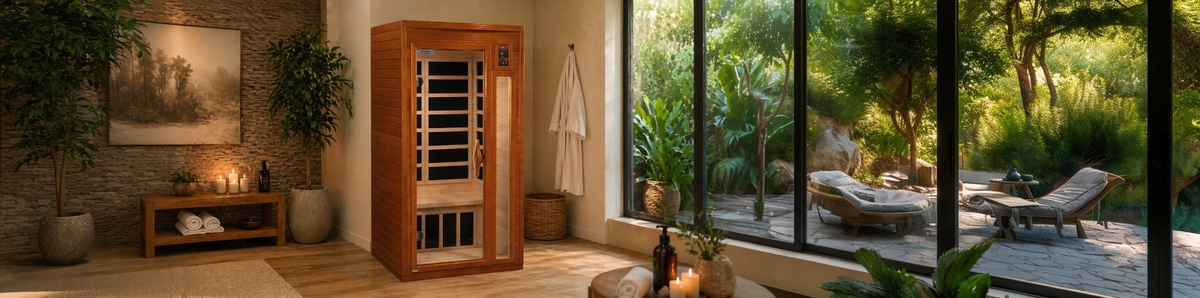

Designed specifically for indoor home use, the Dynamic Barcelona Low EMF Infrared Sauna features a compact, vertical cabin design that integrates easily into residential spaces such as bedrooms, basements, or dedicated wellness areas. With an exterior footprint of approximately 39 inches wide by 36 inches deep and a height of 73 inches, it delivers a space-efficient solution for adding a sauna without requiring significant floor area.

The upright configuration allows for effective full-body infrared use while minimizing the footprint compared to larger multi-person units. Its panel-based construction supports placement in finished indoor environments, while maintaining enough interior space for comfortable 1–2 person use.

When planning installation, adequate clearance should be considered for door swing, ventilation, and safe entry and exit. Overall, the Barcelona model is well-suited for homeowners seeking a compact indoor sauna that balances usability with practical space requirements.

Product color and finish may vary slightly from on-screen images due to lighting conditions during photography, differences in device display settings, and the natural variation in wood grain/color inherent to Canadian hemlock.

The Dynamic Barcelona Sauna is backed by a limited manufacturer warranty from Golden Designs, Inc., covering the wood structure, heating elements, and electronics against defects in materials and workmanship from the original date of purchase. Coverage periods vary by component, with heating elements and electronics covered for up to 5 years, and the wood structure and accessories covered for 1 year. Proof of purchase is required, and coverage applies to the original purchaser at the original installation location.

This sauna is designed for indoor use only. Outdoor placement, exposure to weather or extreme conditions, improper installation, misuse, modifications, or repairs by unauthorized parties will void the warranty. Normal characteristics of wood, including minor expansion, contraction, or surface cracking, are not considered defects.

Warranty service requires returning any defective parts to Golden Designs, Inc., with shipping and associated costs the responsibility of the purchaser. The manufacturer is not liable for incidental or consequential damages, and warranty coverage does not transfer upon resale or relocation. Additional rights may vary by state.

For any support needs, customers are encouraged to contact Golden Designs, Inc. (manufacturer) directly using the information provided with their order.

Please see the SanaVi Warranty Policy Page for further details and information.

Golden Designs, Inc. supports its sauna line with established customer service operations based in Ontario, California, offering assistance via phone and email during standard business hours. As a long-standing North American supplier with distribution through major retailers, the company maintains an organized support structure to assist with product questions, replacement parts, and warranty-related inquiries.

Please refer to the Dynamic Barcelona Sauna User Manual included in your delivery for product related safety information.

For important health and safety information, please review SanaVi's Medical & Safety Disclaimer Page before using this equipment.

By purchasing or using products distributed by SanaVi Health Systems LLC, customers acknowledge that they have read and understood this Medical & Safety Disclaimer and agree to use all equipment responsibly and in accordance with Manufacturer guidance.

What is the Dynamic Barcelona Infrared Sauna?

The Dynamic Barcelona Infrared Sauna is a compact 1–2 person indoor home sauna that uses far infrared carbon heating panels to deliver consistent, full-body heat. Designed for residential use, it operates on a standard 120V outlet and includes low EMF heating technology, integrated lighting, and audio features for a controlled and repeatable at-home sauna experience.

How does an infrared sauna work compared to a traditional sauna?

An infrared sauna works by using far infrared heat to warm the body directly, rather than heating the surrounding air to high temperatures like a traditional sauna. This allows for effective sessions at lower ambient temperatures, creating a more comfortable environment while still supporting consistent heat exposure and regular use.

Does the Dynamic Barcelona Sauna require special wiring?

The Dynamic Barcelona Sauna does not require special wiring and is designed to operate on a standard 120V / 15-amp dedicated outlet. This plug-and-play setup allows for easier installation in most indoor home environments without the need for an electrician, provided a properly rated dedicated circuit is available.

How hot does the Dynamic Barcelona Sauna get and how long does it take to heat up?

The Dynamic Barcelona Sauna typically operates within a temperature range of approximately 118°F to 132°F, with the ability to reach up to around 140°F. Under normal indoor conditions, it generally takes about 20 to 30 minutes to reach the typical operating range, depending on room temperature and placement.

Is the Dynamic Barcelona Sauna low EMF and what does that mean?

The Dynamic Barcelona Sauna is designed with low EMF carbon heating panels, typically measuring in the range of approximately 5–10 milligauss at close proximity to the heaters. Low EMF design refers to reducing electromagnetic field exposure from electrical components, which some users prefer when selecting home wellness equipment.

How difficult is it to assemble the Dynamic Barcelona Sauna?

The Dynamic Barcelona Sauna is designed for relatively straightforward assembly using a clasp-together panel system. Most installations can be completed by two adults in approximately one hour using basic tools such as a screwdriver. The included assembly instructions provide step-by-step guidance to support proper setup and installation.

For proper setup, operation, and ongoing use, please refer to the Dynamic Barcelona Sauna User Manual and Assembly Instruction Manual included with your unit. The manual provides step-by-step guidance on installation, program selection, safety considerations, and recommended usage to help ensure consistent and appropriate performance over time.

Routine maintenance for the Dynamic Barcelona Sauna is minimal and focused on keeping the interior clean, dry, and well-ventilated after each session. Wipe down interior surfaces periodically with a soft cloth and avoid the use of harsh chemicals or excessive moisture, as the natural wood construction is designed to breathe and respond to heat.

To maintain performance, allow the sauna to fully dry between uses and keep the roof vent open as needed for airflow. Electrical components and heating panels should remain undisturbed, and the unit should always be operated according to the included user manual. With proper care and indoor use, the sauna is designed to provide consistent, long-term performance.

For complete maintenance instructions and care guidelines, please refer to the User Manual and Set Up Guide included with your delivery.
